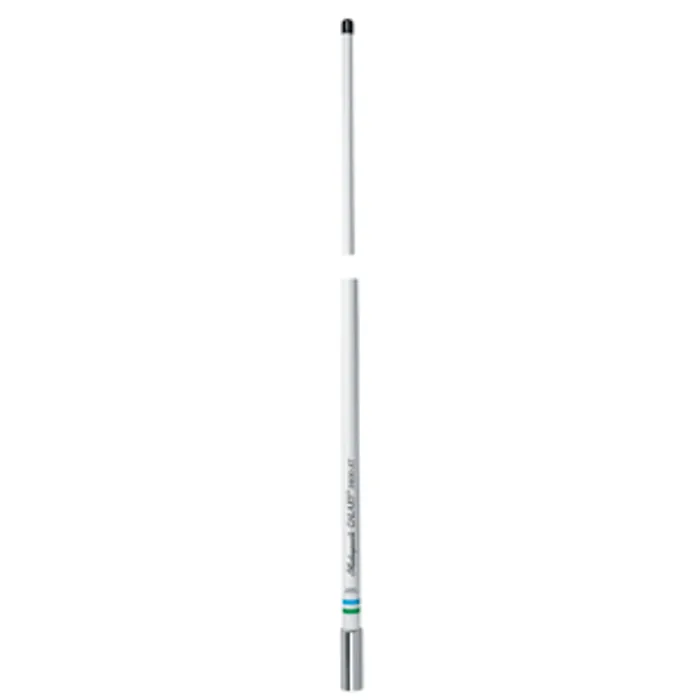

5400-XT Galaxy 4' VHF Antenna

Center-fed 1/2 wave coaxial sleeve

The compact Galaxy® 5400-XT is an outstanding, general purpose 4' antenna of heavy duty construction for general purpose communications. Its at home on T-tops, hard-tops, and other positions aloft, where its small size can deliver maximum range.

Features:

• Brass and copper elements for maximum range
• Stainless steel ferrule with standard 1"-14 thread
• Includes 20' RG-8/X cable and a PL-259 connector
• Suggested mount: Shakespeare Style 4187 Ratchet Mount
• One section
• Shakespeare Limited Warranty: 5 years
• Includes FME Cables

Technical Specifications:

Frequency:	VHF Marine Band
Bandwidth:	5 MHz within 2.0:1 VSWR
SWR:	nominally 1.5:1 at 156.8 MHz
Gain:	3 dB
Max Input (Watts):	50 watts
Height (feet):	4
