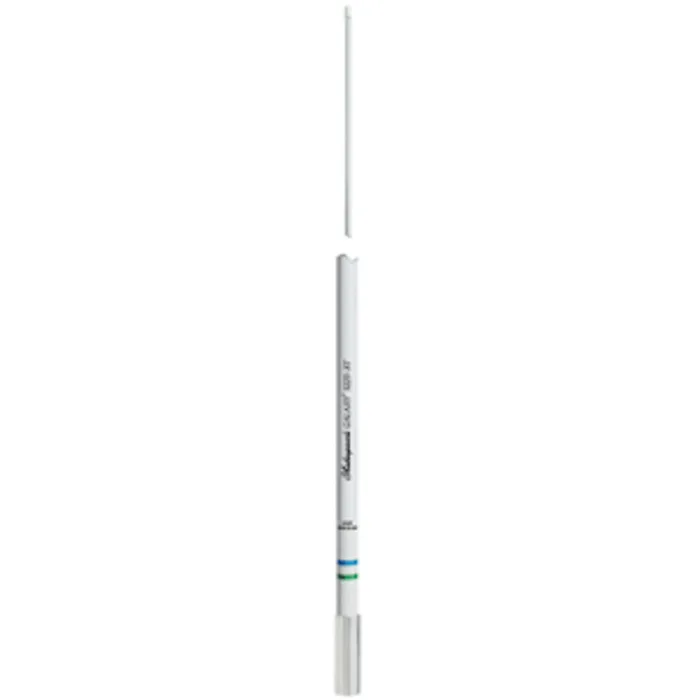

5225-XT 8' VHF Galaxy Antenna 6dB Gain - Reduced Length

Collinear-phased 5/8 wave elements

EXTRA TOUGH!

Shakespeare's best 8', 6dB Gain antenna. Its Galaxy® design maximizes range and quality in a great looking antenna. The 5225-XT is Shakespeare's classic Style 5225 in a new, stronger, sturdier, stiffer radome for extra duty. It's extra tough for use on hard tops, T-tops, radar arches, or wherever its extra resistance to high winds and high speeds is welcome.

Features:

• Brass and copper elements for maximum range and efficiency
• Stainless steel ferrule with standard 1"-14 thread
• 20' RG-8/X low-loss cable plus a PL-259 connector
• Suggested mount: Shakespeare Style 4187 Ratchet Mount
• One section
• Shakespeare Limited Warranty: 5 years
• Includes FME cables

Technical Specifications:

• Frequency:    VHF Marine Band
• Bandwidth:    3 MHz within 2.0:1 VSWR
• SWR:    nominally 1.5:1 at 156.8 MHz
• Impedance:    50 ohms
• Max Input (Watts):    100 watts
• DC Ground:    YES
• Polarization:    Vertical

5225-XT 8 VHF Galaxy Antenna 6dB Gain

Collinear-phased 5/8 wave elements

EXTRA TOUGH!

Shakespeares best 8, 6dB Gain antenna. Its Galaxy® design maximizes range and quality in a great looking antenna. The 5225-XT is Shakespeares classic Style 5225 in a new, stronger, sturdier, stiffer radome for extra duty. Its extra tough for use on hard tops, T-tops, radar arches, or wherever its extra resistance to high winds and high speeds is welcome.

Features:

• Brass and copper elements for maximum range and efficiency
• Stainless steel ferrule with standard 1-14 thread
• 20 RG-8/X low-loss cable plus a PL-259 connector
• Suggested mount: Shakespeare Style 4187 Ratchet Mount
• One section
• Shakespeare Limited Warranty: 5 years

Technical Specifications:

• Frequency:    VHF Marine Band
• Bandwidth:    3 MHz within 2.0:1 VSWR
• SWR:    nominally 1.5:1 at 156.8 MHz
• Impedance:    50 ohms
• Max Input (Watts):    100 watts
• DC Ground:    YES
• Height (feet):    8
• Polarization:    Vertical
