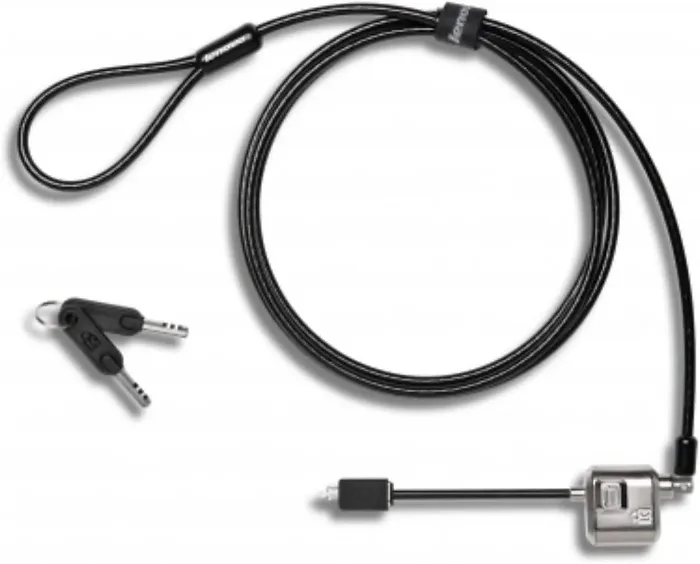

Overview for Kensington MiniSaver Cable Lock (4X90H35558)

The Kensington MiniSaver cable lock from Lenovo provides physical security for tablets, Ultrabooks, laptops, phones, desktops, monitors, docks, or other compatible devices in public areas such as offices, schools, or while traveling. Cable locks serve as the first line of defense to help reduce theft and increase physical asset security.

Key Features

• Superior strength lock head to resist tampering
• Push button design for one-hand operation and easy installation
• High level of security and protection against hardware and data theft
• Supports new tablets and hardware; backwards compatible with all systems with a lock slot
• Smallest attach point in the industry, unobtrusive to other ports
• Designed for ease-of-use and aesthetics
• Supports existing keying technology and methods
• Comes with 2 unique keys
• 7x7 hardened steel cable, 1,830mm (72 inches) long, weighing 195 grams (6.88 ounces)
• Various key management options available, including Custom key and Master key solutions (Contact Lenovo for details)

Technical Information

• Lock Specification:

  • Disk style lock (7 disks, 5 positions per disk)
  • Push button to lock, key to unlock
  • Zinc push button
  • Engagement mechanism: Cleat™ Locking Technology using retracting “claws” for a strong connection

• Cable Specification:

  • Outer Diameter (with coating): 5.0 mm (0.2 inches)
  • Inner Diameter (metal cable – without coating): 3.5 mm (0.14 inches)
  • Configuration: 7x7 (7 inner cable bundles, 7 strands per bundle)
  • 360-degree cable rotation
  • Length: 1,830mm (72 inches)
  • Velcro Strap - Lenovo Branded
  • Cable Crimp - Lenovo Branded

Environmental Specifications

• Storage Environment: -20 to 60, up to 90% RH
• Operating Environment: -5 to 40, up to 90% RH

Physical Specifications

• Without Package:

  • Weight: 0.195kg (6.88 ounces)
  • Length: 1.83m (72 inches)

• With Package:

  • Weight: 0.280kg (9.88 ounces)
  • Dimensions: 14cm x 13.5cm x 3.5cm (5.51 inches x 5.31 inches x 1.38 inches)

Packaging

• Brown Box

Shipment Group

• MiniSaver cable lock (+ key)
• Setup/Warranty Poster
• Brown box

Warranty Terms

• 3-year Warranty

Compatible Devices

• Tablet 10
• ThinkCentre M720, M920
• ThinkPad A285, A485, E48X, E58X, P1, P52, X1 Extreme
