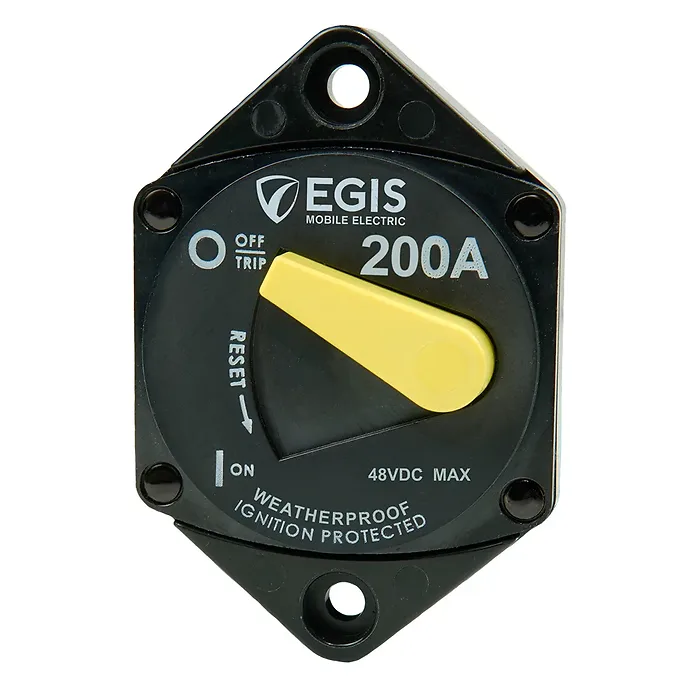

This 200A Egis Panel Mount Circuit Breaker is designed to safeguard electrical circuits against short circuits and thermal overloads, while providing reliable manual circuit switching for live load applications. Built with a weatherproof casing, it ensures durable circuit protection in various environmental conditions. It features high-voltage interrupt current capabilities, allowing for safe operation with large series or parallel-connected battery banks. The convenient round cutout mounting style allows for straightforward installation into chosen panels.
Applications:
Safeguards electrical circuits from short-circuit events and over-current loads, preventing insulation overheating and damage.
Combines automatic circuit protection and manual switching in a compact, reliable solution.
Facilitates circuit isolation and maintenance of load circuits with integral protection, easily mountable near battery systems.
Specifications:
Continuous Current Amps: 200
Max Voltage: 48
Cycling Endurance: 2,000
Interrupt Current @14 VDC (Amps): 5,000
Interrupt Current @28 VDC (Amps): 3,000
Ingress Protection Rating: IP66
IP66 rated for dust and water resistance, ensuring long-lasting circuit protection.
High voltage (48 Vdc) rating supports 12, 24, 36, and 48 Vdc applications.
Strong electrical and manual switching capability with up to 2,000 full current cycles.
High interrupt current capacity to protect circuits linked to substantial paralleled battery banks.
Backed by a 4-year warranty from Egis, affirming product quality and reliability.
