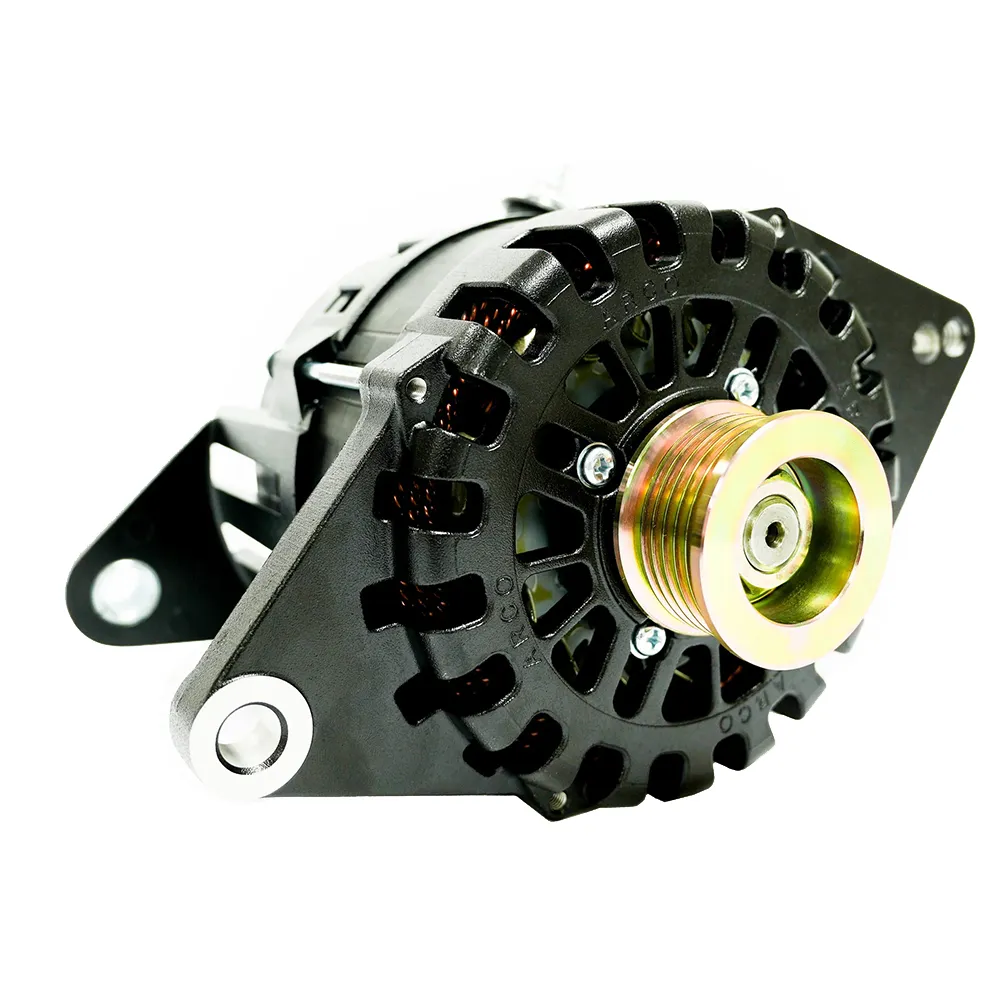

ARCO Zeus 24V 7kW J180 4" Isolated Ground Alternator
The ARCO Zeus 24v 7kW alternator is engineered for high energy production, generating exceptional amperage under cruising and high RPM conditions. This powerful alternator produces over 3kW (109 Amps) at nearly 3,000 alternator RPM and reaches up to 6kW (218 Amps) at below 6,000 RPM, making it ideal for applications like marine diesel engines and commercial vehicles.
Characterized by its lightweight design and efficient cooling system, the ARCO Zeus turns on during cruising and operates effectively at mid to high RPMs. Its native 24V rotor and field current significantly enhance efficiency, extending the lifespan of the alternator compared to traditional 12V designs.
Key features include:
Engineered for high energy production.
Suitable for marine, RV, military, and commercial applications.
Rapidly charges large battery banks.
Designed for cooler operating temperatures.
Incorporates heat-shedding coatings for improved durability.
Features rectifier located on the housing exterior.
Includes dual cooling fans to enhance performance.
Built with OEM components for reliability.
Optimized for performance at idle speeds, reducing reliance on generators.
Coated with E-Coat/Cerakote to maintain cooler temperatures for sustained output.
Compatible with ARCO Zeus Bluetooth Alternator Regulator for optimal performance.
SAE J1171 Certified for quality assurance.
Proudly made in the U.S.A.
Voltage: 24V
Field Type: P
Rotor Poles: 16
Stator Size: 138mm
Frame Size: Large
Weight: 15.89lbs (7.2kg)
Regulation: External Only
Finish: E-coating (Black)
Cut-In RPM: 1,962 Alternator RPM
Max Alt RPM: 19,000
Battery Post: M8 Thread Post, Side Mount
Standard Pulley: 49K6 (6-groove, 49mm)
Pulley Mount: 17mm diameter shaft, 25mm long
Pulley Hardware: M17 x 1.5 x 24mm nut, includes washer
Diodes: 6 positive, 6 negative, rated at 80A
Max Output (Cold, 9,000 RPM) at 27.5V: 284 Amps - 11.2 kW PTO
