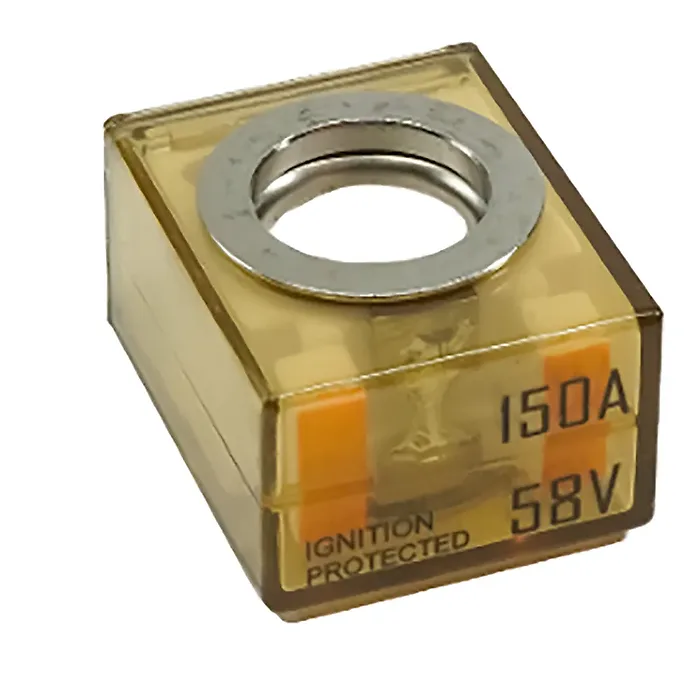

MRBF 150 Amp Terminal Fuse for DC Circuit Protection

• Transparent design for easy visual inspection of fuse status
• Ignition-protected, compliant with SAE/J1171 and ISO8846 standards
• High interrupt rating meets ABYC requirements, ideal for large battery banks
• Color-coded for easy identification of amp rating

Key Features:

• Safeguards electrical circuits against short circuits and over-current loads, preventing overheating and damage to wire insulation.
• High interrupt current capability securely protects circuits linked to substantial paralleled battery banks.
• Ignition protected for safe installation in enclosed spaces with potential explosive gases; designed to withstand harsh environments with shock and vibration resistance, perfect for marine and vehicle applications.
• Sealed against dust and water intrusion, ensuring reliable circuit protection throughout the electrical system's life.
• Rated for 58 VDC, compatible with 12 to 48V nominal applications.
• Backed by a 4-year warranty, affirming our commitment to quality and reliability.

Technical Specifications:

• Continuous Current: 150 Amps
• Maximum Voltage: 58 VDC
• Interrupt Rating @ 14 VDC: 10,000 Amps
• Interrupt Rating @ 48 VDC: 5,000 Amps
• Interrupt Rating @ 58 VDC: 2,000 Amps
• Ingress Protection Rating: IP66
