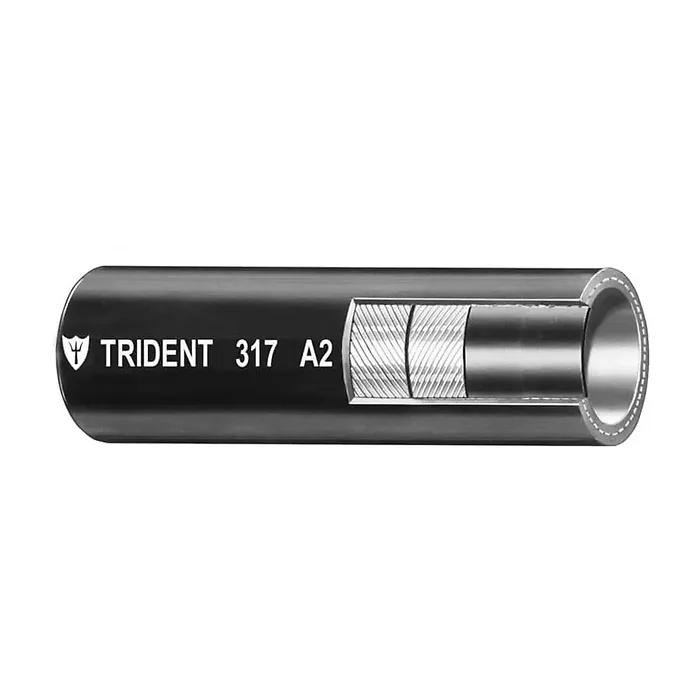

Trident 5/8" A2 Fuel & Vent Hose - Black - Sold by the Foot

The Trident 5/8" ID A2 Fuel Hose is designed specifically for marine applications, accommodating gasoline (including ethanol blends) and diesel (including biodiesel blends).

Features:

• Sold by the foot
• Constructed with a fuel, fire, and age-resistant formulation
• Exceptional resistance to aging, fire, heat, cold, and ozone
• Superior flexibility and bend-ability

Application:

• For use as a marine fuel hose for both venting and diesel distribution
• Suitable for all marine fuels including gasoline, alcohol blends, diesel, and biodiesel

Construction:

• Tube Material: NBR
• Cover Material: NBR/PVC Blend
• Reinforcement: 2 Spiral Polyester
• Temperature Range: -20°F to 212°F (-28°C to 100°C)

Specifications:

• Inner Diameter: 0.625" (15.9 mm)
• Outer Diameter: 0.960" (24.4 mm)
• Burst Pressure: 200 psi (1.38 mpa)
• Working Pressure: 50 psi (0.34 mpa)
• Bend Radius: 3" (76.2 mm)
• Weight: 25.84 lb/100ft (11.72 kg/m)

*The #317 series meets and exceeds ABYC H-24 & H-33, SAE J1527, ISO 7840, & USCG Type A2 standards; NMMA Type Accepted & CE certified.

• Sold by the foot
• Fuel, fire, and age-resistant formulation
• Extraordinary aging and fire resistance
• Excellent flexibility
