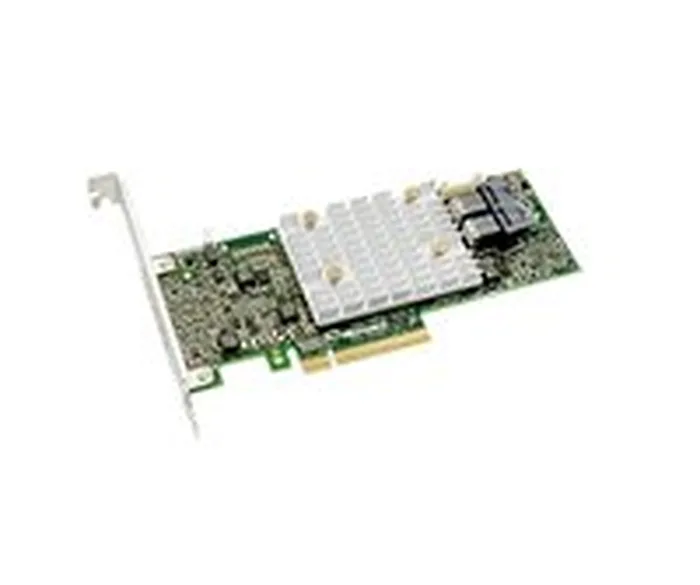

Microchip Adaptec SmartRAID 3102-8i - storage controller (RAID) - SATA 6Gb/s / SAS 12Gb/s - PCIe 3.0 x8

Ports
8 internal Connectors
2 x SFF-8643 maxCache 4.0
No Cache Protection
No All Core Boost Speed
SmartRAID 3102-8i adapter
Additional low profile vented bracket RAID Levels
0, 1, 5, 6, 50, 60, 1 ADM, 10 ADM Form Factor
MD2-Low Profile Bus Interface
8-Lane PCIe Gen3 Processor
12 Gbps ROC Key software features
- maxCache 4.0 caching software (all SmartRAID 315x products with cache protection)
- Mixed mode allows to use RAID and HBA devices simultaneously
- Adapter dynamic power management to save up to 30% power
- Supports up to 256 SAS or SATA devices using SAS expanders
- Support for native 4K sector SAS and SATA devices in addition to 512-byte sector devices
- Triple mirroring, move array, split mirroring
- RAID advanced data management
- Quick initialization
- Online capacity expansion
- Copyback hot spare
- Dynamic caching algorithm
- Native command queuing (NCQ)
- Background initialization
- Hot-plug drive support
- RAID level migration
- Hot sparesglobal, dedicated, and pooled
- Automatic/manual rebuild of hot spares
- SES and SAF-TE enclosure management
- Configurable stripe size
- S.M.A.R.T. support
- BMC support
- Dynamic sector repair
- Staggered drive spin-up
- Bootable array support
- Support for tape devices, autoloaders
- MSI-X support for all device drivers for all supported operating systems
- Secure boot support for the uEFI host BIOS
- USB image available on storage.microsemi.com/en-us/support/start to boot maxView GUI from any USB device for enhanced GUI-based setup and offline maintenance Management utilities
- maxView Storage Manager:
- Web-based GUI management utility
- OS support: Windows, Linux, Solaris, VMware
- Remote configuration, monitoring, and notification
- Remote firmware updates
- SMI-S
- SMTP ARCCONF
- Command-line interface
- SMI-S support for VMware
BIOS Configuration Utility (CTRL+A):
- Legacy configuration utility
- Flashable BIOS support uEFI BIOS Configuration Utility
- HII-based configuration utility
- Flashable BIOS support
Event Monitor:
- Lightweight event monitoring and logging tool
- Distributes adapter events and notifies user Cache
2GB DDR4/2100 MH Operating Systems
Microsoft Windows, Red Hat Linux, SUSE Linux, Fedora, Debian Linux, Ubuntu Linux, Sun Solaris, FreeBSD, VMware ESXi. The latest drivers are available at storage.microsemi.com/en-us/support/start. Supports open-source Linux drivers and inbox drivers Operating Temperature
0oC to 55oC with 200 LFM airflow, without flash (SmartRAID 3154-24i requires 250 LFM), 0oC to 50oC with 200 LFM airflow, with flash (SmartRAID 3154-24i requires 250 LFM) Regulatory Certification
CE, FCC, UL, C-tick, VCCI, KCC, CNS Environmental Compliance
RoHS MTBF
1.37 million hours, measured at 40oC Item Dimension ( L inchxW inchxH inch)
15 x 10 x 2 Weight
2.00 lb Warranty Information
3 Years
