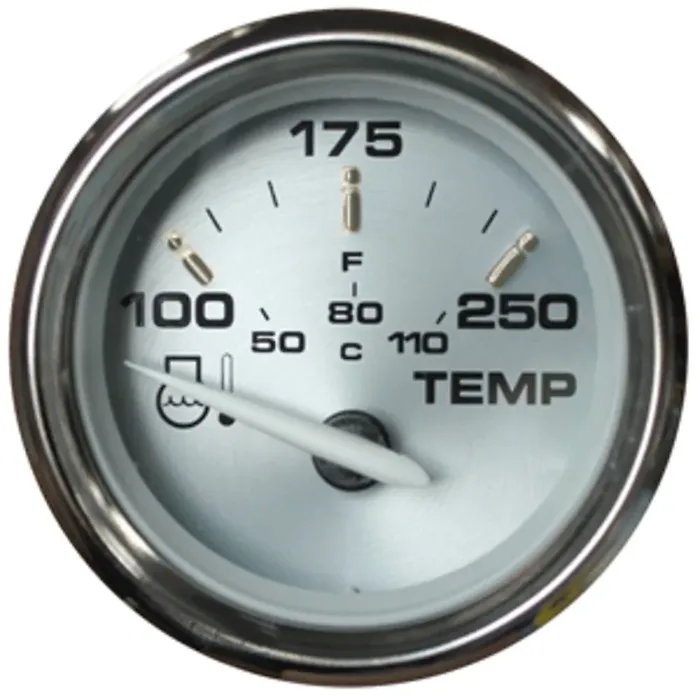

Kronos 2" Water Temperature Gauge (100-250°F)

Polished Stainless Steel bezel, flat glass lens, perimeter lighted spun aluminum dial with Gold and Black graphics. Gold increments and Logo on dial are Embossed.  All instruments include two piece Newport pointer with White hub.

A temperature gauge operates by sending a low amperage current through the gauges meter to ground via a sending unit with variable resistance. The resistance of the sending units increase or decrease with the changes in pressure, temperature, etc.

As the sender's resistance varies, the amount of current allowed to flow through it to ground changes and the meter deflects, showing the temperature.

2" - Hole Size: 2.0625" (53mm)

Specifications:

• Flat Scratch Resistant Lens
• Polished Stainless Steel bezel
• LED Illuminating around the Perimeter of the Dial
• Newport style White Pointer
• Dual Scale - Imperial and Metric

Factory P/N GP7682

*Sold as an Individual

**Gauge Cover not Included

Kronos 2 Water Temperature Gauge (100-250°F)
2 - Hole Size: 2.0625 (53mm)

A temperature gauge operates by sending a low amperage current through the gaugess meter to ground via a sending unit with variable resistance. The resistance of the sending units increase or decrease with the changes in pressure, temperature, etc...

As the senders resistance varies, the amount of current allowed to flow through it to ground changes and the meter deflects, showing the temperature.

Available for MG systems, J1939 CAN Bus or J1939 Stand-Alone systems and mechanical types.

Benefits:

• Standard (100-250° F)

• Metric (40-120° C)

• Dual Scale

• With or without Warning Lights
