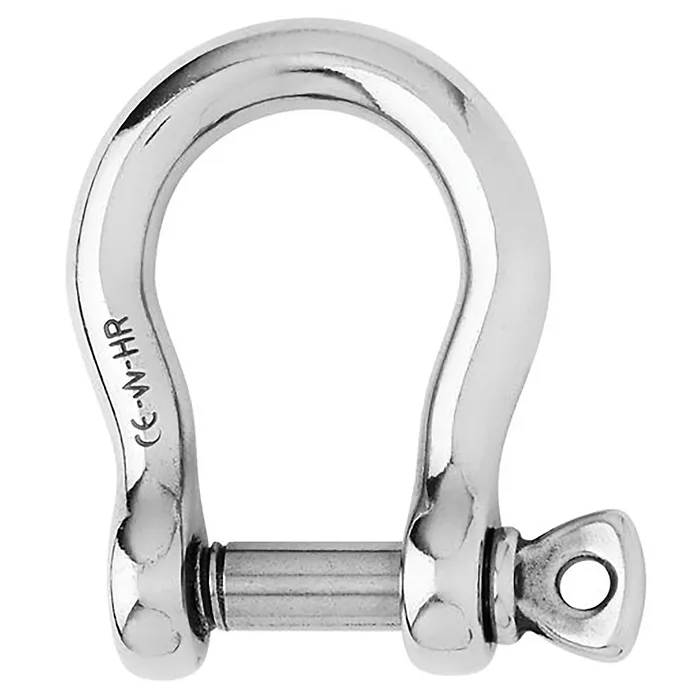

Heavy Duty HR Bow Shackle - 24mm Diameter - 15/16"

This heavy-duty bow shackle is crafted from high-resistant (HR) stainless steel grade 17.4 PH, making it ideal for applications requiring exceptional strength. It boasts a remarkable working load limit (WLL) and breaking load, designed specifically for industrial lifting tasks while ensuring safety and reliability.

Key Applications:

• Suitable for high load requirements
• Optimal for scenarios requiring ample clearance
• Allows for the attachment of multiple lines or cables
• Not recommended for mooring applications

Specifications:

• Materials: HR 17.4 PH stainless steel grade
• Working load: 28,210 lb (12,800 kg)
• WLL: 15,430 lb (7,000 kg)
• Breaking load: 77,160 lb (35,000 kg)
• Weight: 3.761 lb (1.706 kg)

Dimensions:

• A: 4 1/4" (108 mm)
• B: 1 57/64" (48 mm)
• C: 15/16" (24 mm)
• D: 1 27/32" (47 mm)
• D diameter: 15/16" (24 mm)
• E: 25/32" (20 mm)
• M: 4 41/64" (118 mm)

This shackle is ideal for a range of industrial lifting applications where safety and performance are paramount. It is sold individually.

• Manufactured from high-resistant HR stainless steel
• Superior working and breaking loads
• 60% more resistance compared to 316L stainless steel
• Designed strictly for industrial applications
• CE marked for safety compliance
